Concord, Ranger and Paddock Harrows

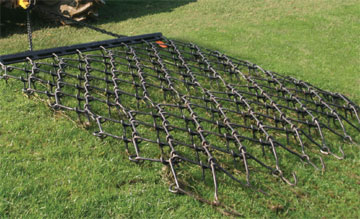

Concord Section
Harrow sections are available in 4'-0", 6'-0", 8'-0" and 10'-0" widths with a standard depth of 8'-0". They are manufactured from 1/2" diameter high quality steel.
Sections can be carried in multiples on drawbars ranging from 4'-0" to 18'-0" using 4'-0", 6'-0", 8'-0" and 10'-0" sections.
SPARE PARTS - click here to download brochure.

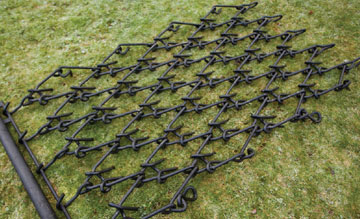

Ranger Section
Harrow sections are available in 4'-0" and 6'-0" widths with depths of 6'-0" and 8'-0". They are manufactured from 5/8" diameter high quality steel.
Sections can be carried in multiples on drawbars ranging from 4'-0" to 18'-0" using both 4'-0" and 6'-0" sections.
SPARE PARTS - click here to download brochure.

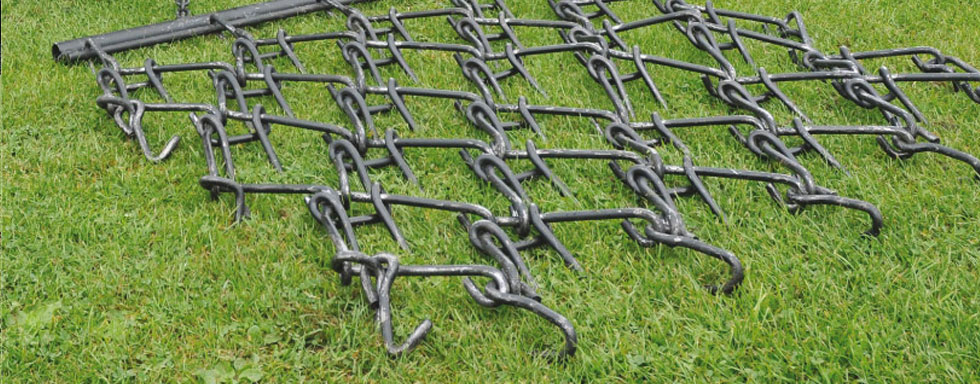

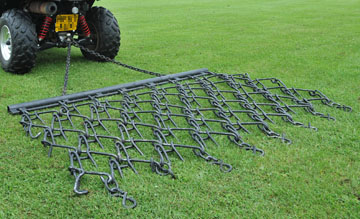

Paddock Section
Harrow sections are available 4'0" and 6'-0" wide by 4'-0" deep with 1/2" diameter tines.
These Junior size harrows can be used with garden tractors, ATV's and pick-ups.
Specification
|
Weight (lbs) |
|||||||
| Type | Depth | Tine Size | Application | 4’-0” | 6’-0” | 8’-0” | 10’-0” |
| Concord | 8’-0” | 1/2” dia x 3 1/2” | For pasture renovation, break up clods and crusting in cultivated ground, also suitable for sports fields, racetracks and golf courses | 150 | 243 | 320 | 397 |
| Ranger | 6’-0” | 5/8” dia x 4 1/2” | For pasture renovation and breaking up and mixing post harvest residue. Also suitable for working cultivated ground. | 181 | 286 | - | - |
| 8’-0” | 5/8” dia x 4 1/2” | 236 | 374 | - | - | ||
| Paddock | 4’-0” | 1/2” dia x 3 1/2” | For paddocks, sports fields manege and horse arenas |
75 |
121 | - | - |
If you have any questions about this product or any others in our range, please don't hesitate to contact us.
